How to Engrave Cylindrical Objects with a Laser Engraver: Complete Rotary Module Guide 2026
If you've ever wondered how to put a personalized message on a coffee mug, engrave a design onto a wine bottle, or add custom text to a ring, the answer is a rotary module attachment for your laser engraver. In this guide, you'll learn exactly how rotary modules work, which objects you can engrave, and the best settings to achieve professional results every time.
What is a Rotary Module for Laser Engravers?

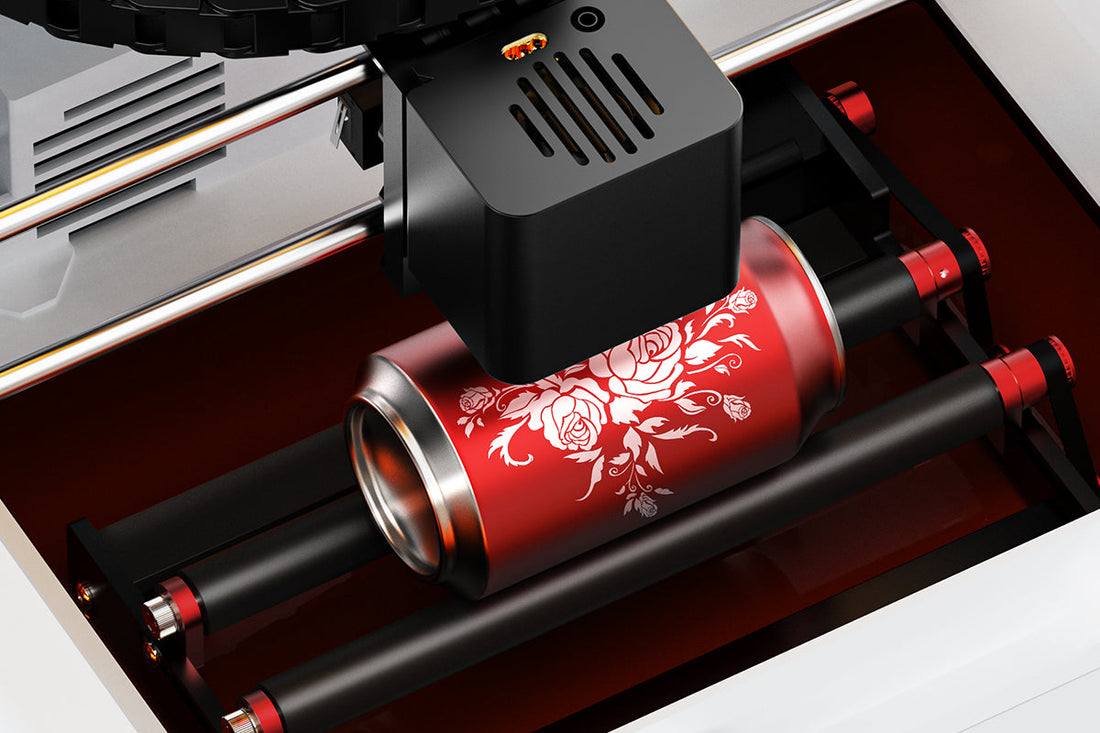

A rotary module (also called a rotary attachment or roller drum) is an accessory that replaces your standard Y-axis platform. Instead of the laser head moving in a straight line, the rotary module spins the object—allowing the laser to engrave curved, cylindrical surfaces with precision.
The Laservii LR1 Rotary Module is designed for use with the L1 Pro, L1 Plus, and M1s laser engravers. It features a rotating shaft capable of 360-degree engraving on small, medium, and large cylindrical objects.
What Can You Engrave with a Rotary Module?
The possibilities are extensive. Common items include:
- Drinkware: Coffee mugs, water bottles, wine bottles, beer growlers, tea cups
- Containers: Glass jars, perfume bottles, essential oil bottles
- Accessories: Rings, bracelets, watches, pill cases
- Kitchen items: Stainless steel tumblers, travel mugs, mixing bowls
- Decorative items: Candle holders, vases, ceramic planters
How to Set Up the LR1 Rotary Module
Step 1: Install the Rotary Module
Remove the Y-axis platform from your Laservii laser engraver. Attach the LR1 by connecting it to the same mounting points. The process typically takes under 5 minutes with the included hardware.
Step 2: Position Your Object
Place your cylindrical item onto the rubber rollers. Adjust the width of the rollers to match your object's diameter. For thin items like rings, use the narrow roller position. For large mugs and bottles, spread the rollers wider.
Step 3: Configure Your Software
In LightBurn or LaserGRBL:
- Select the Rotary Mode setting
- Enter your object's diameter (measure with calipers for accuracy)
- Set the object height if needed
- Test with a simple design before running your full project
Best Laser Settings for Common Materials
Ceramic Mugs (Glazed)
Ceramic mugs require a specific approach because of their glaze coating. The laser marks the glaze, which reveals the ceramic body underneath.
- Power: 60-80%
- Speed: 300-400 mm/min
- Passes: 2-3
- Focus: Slightly defocused (1-2mm above surface)
Stainless Steel Tumblers
Stainless steel requires either a fiber laser for true etching, or a coating method with diode lasers. For diode lasers:
- Apply laser marking spray (Cermark or equivalent) to the surface first
- Power: 80-100%
- Speed: 200-300 mm/min
- Passes: 1-2
Glass Bottles (Wine, Beer, Essential Oils)
Glass engraving works by creating micro-fractures in the surface.
- Power: 50-70%
- Speed: 400-500 mm/min
- Passes: 1
- Tip: Apply soapy water or masking fluid to reduce breakage
Rings and Jewelry
For rings (especially metal), use the narrow roller setting for maximum stability.
- Power: 100% (with coating) or fiber laser required
- Speed: 150-250 mm/min
- Tip: Use a ring mandrel attachment for consistent sizing
Diameter Calibration: Why It Matters
Getting the diameter right is critical. If the diameter is set incorrectly, your text will appear stretched or compressed. Always measure:
- Use digital calipers for accuracy (within 0.1mm)
- Measure at the engraving height (not the top of the object)
- For tapered objects, use the midpoint diameter
Troubleshooting Common Rotary Engraving Issues
Design Appears Stretched
This usually means the diameter setting in your software is larger than the actual object. Reduce the diameter value until the proportions look correct.
Design Appears Compressed
The opposite problem—your diameter setting is smaller than reality. Increase the diameter value.
Inconsistent Depth
Check that the object is centered and the rollers are parallel. Uneven pressure causes the object to wobble during rotation.
Burn Marks on Glass
Reduce power and increase speed. Too much heat creates chipping. Consider using a dot mode instead of line mode for glass.
Making Money with Rotary Engraving
Custom drinkware is one of the most profitable laser engraving niches. A single custom mug can sell for $25-50, while a wine bottle engraving commands $30-60. The LR1 Rotary Module at $59 pays for itself in just 2-3 orders.
Popular products to sell:
- Wedding favor mugs with couple's names and date
- Corporate branded drinkware
- Birthday and holiday personalized gifts
- Memorial keepsake bottles
Conclusion
The rotary module opens up an entirely new product category for your laser engraving business. With the Laservii LR1 ($59) and a compatible machine like the L1 Pro, L1 Plus, or M1s, you can engrave mugs, bottles, rings, and more—all with 360-degree precision.
Invest in a rotary module, experiment with the settings above, and you'll be producing professional-quality cylindrical engravings in no time.
