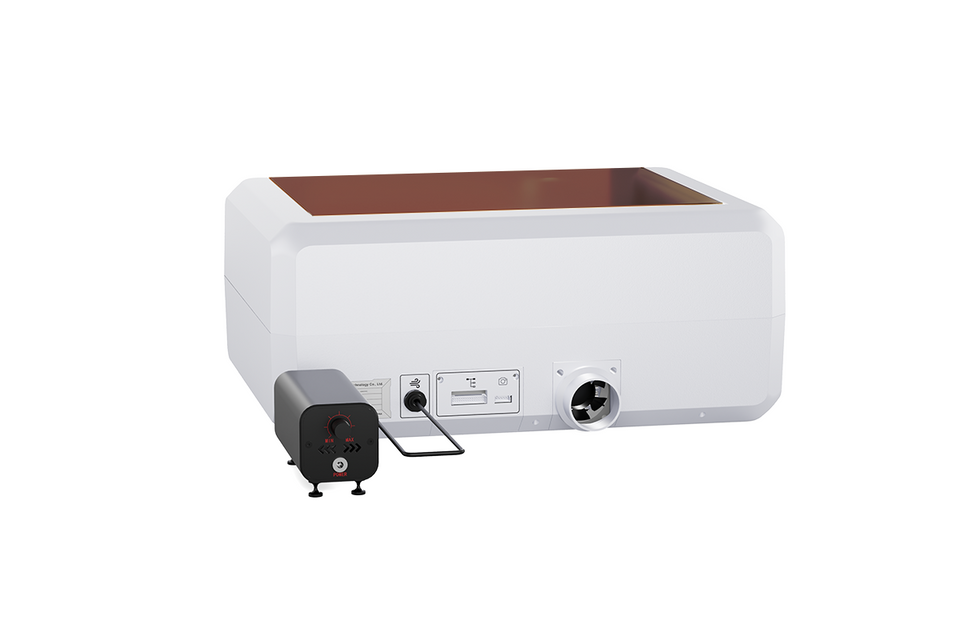

Air Assist Pump
Enhance Engraving Efficiency
BUY NOWGraveur laser fermé Laservii M1s
Prix régulier
€263,95
Prix soldé
€263,95
Prix régulier
€580,95
Prix unitaire
par
SAVE €317,00
Expédition calculée lors du paiement.
Impossible de charger la disponibilité des retraits
- BEST PRICES
- WELL TRUSTED
- EXPERT HELP
Safety, M1s is Family-ready. Always.
-
Family-Friendly Certification
Automatically pauses when the lid is opened, effectively preventing accidental contact with the laser by children or pets.
Fully enclosed, worry-free -
Environmentally friendly

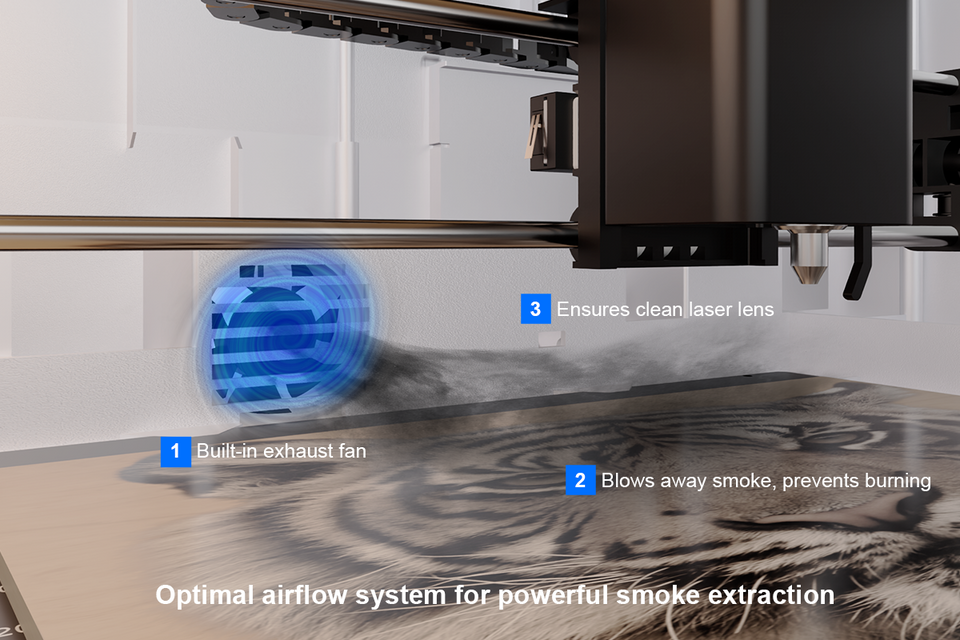

Built-in exhaust fan automatically removes smoke during carving; suitable for use in both living rooms and home offices.
Pure air, smoke-free and odorless -
Whisper-Quiet Operation
Quiet as an air conditioner,won't disturb your family even at midnight. Perfect for 24/7 creativity.
Perfect for 24/7 creativity
Enclosed Eco-Design Makes M1s Stand Out
Healthier & Cleaner
Enclose and Contain Smoke, Dust, and Harmful Gasesto lmprove Air Quality in the Workspace and Reduce Cleaning and Maintenance Costs.

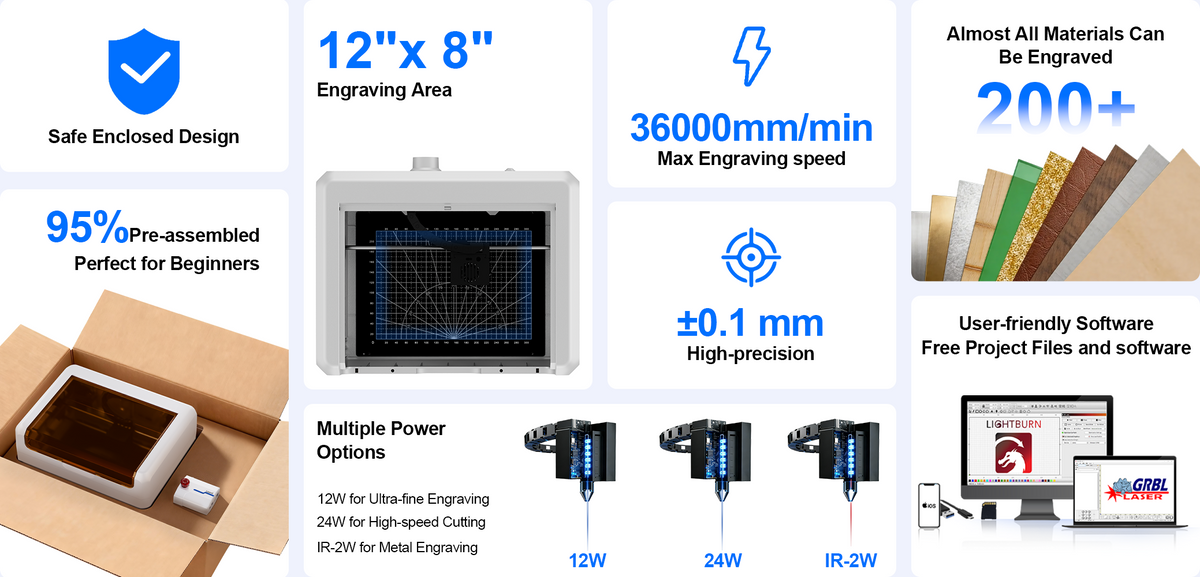

Easily Bring All Your Creative ldeas to Life
High-Speed Engraving
Efficient Production
Precision Machining

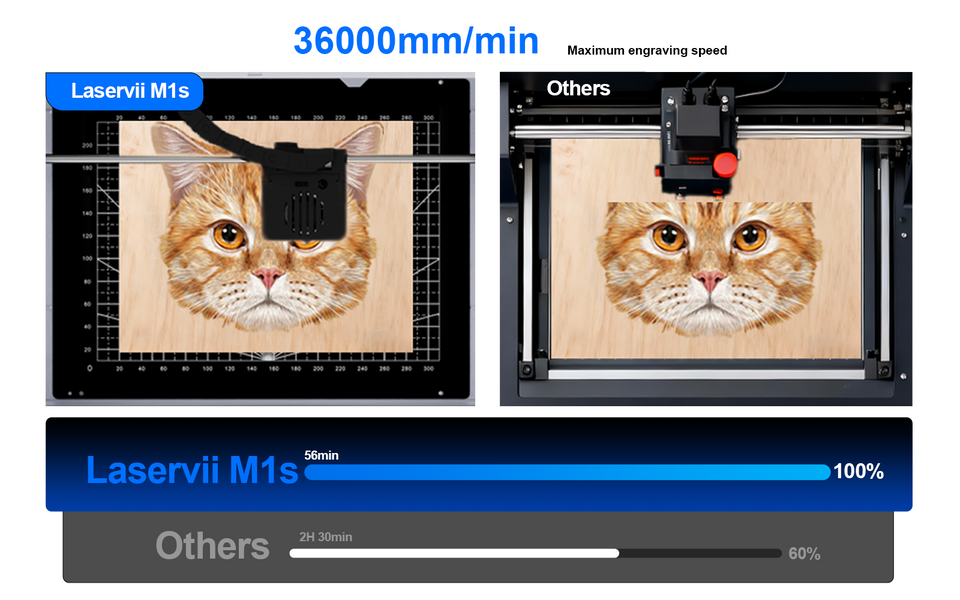

With engraving speeds reaching up to 36000mm/min, both mass production and personal projects can be completed without lengthy waits. Outpacing standard desktop engravers by over 150%, it compresses tasks that once took hours into mere minutes, delivering a quantum leap in your productivity.

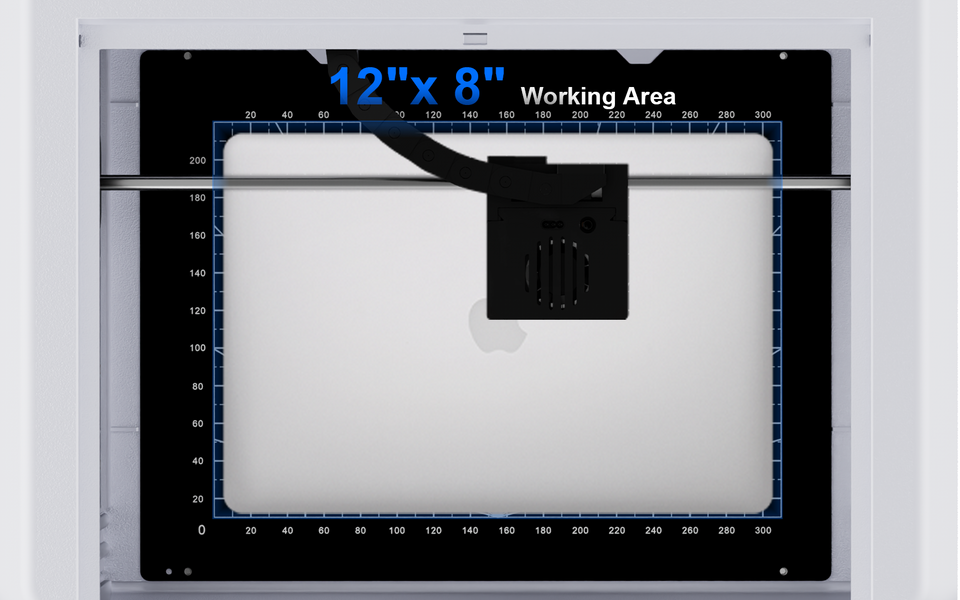

This product features a working area of 12'' x 8'', catering to personalized and small-batch production needs. You can create high-value customized products or produce small-batch custom items, significantly boosting efficiency and reducing material waste. It comprehensively enhances your production capacity, output, and profitability.

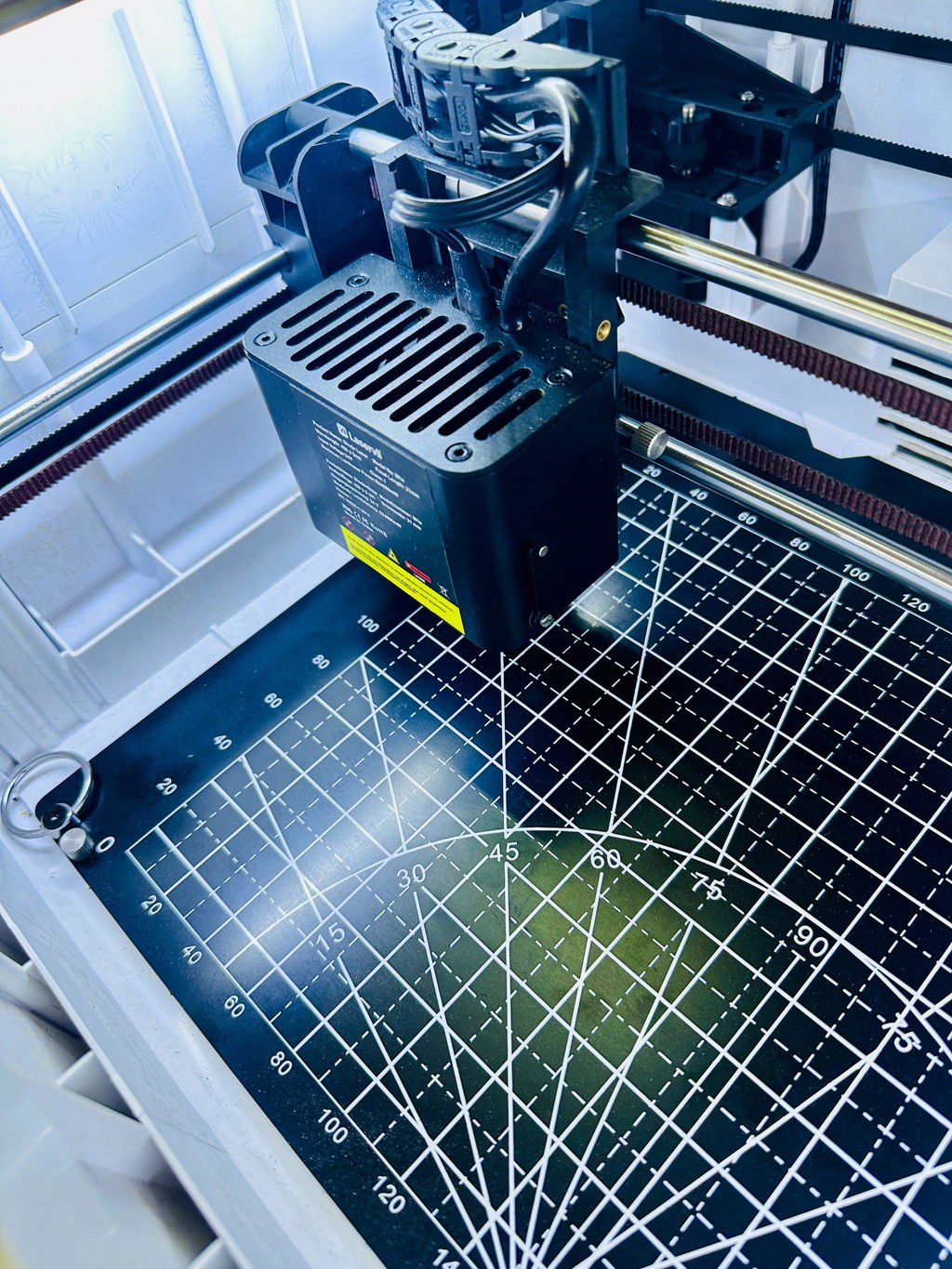

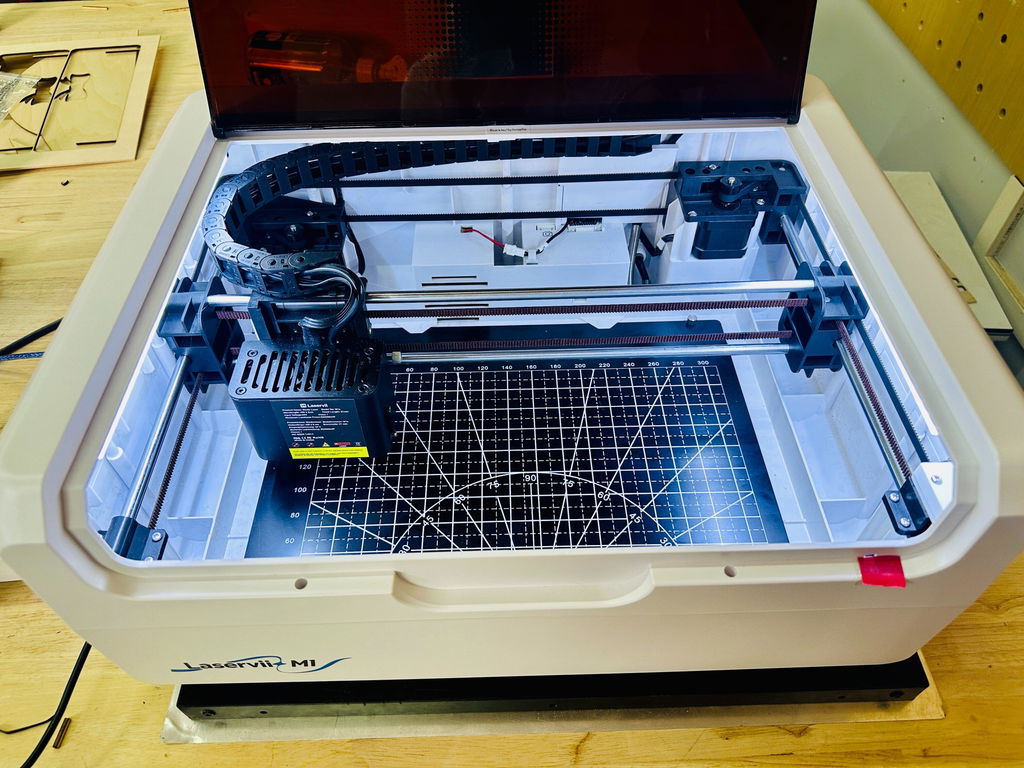

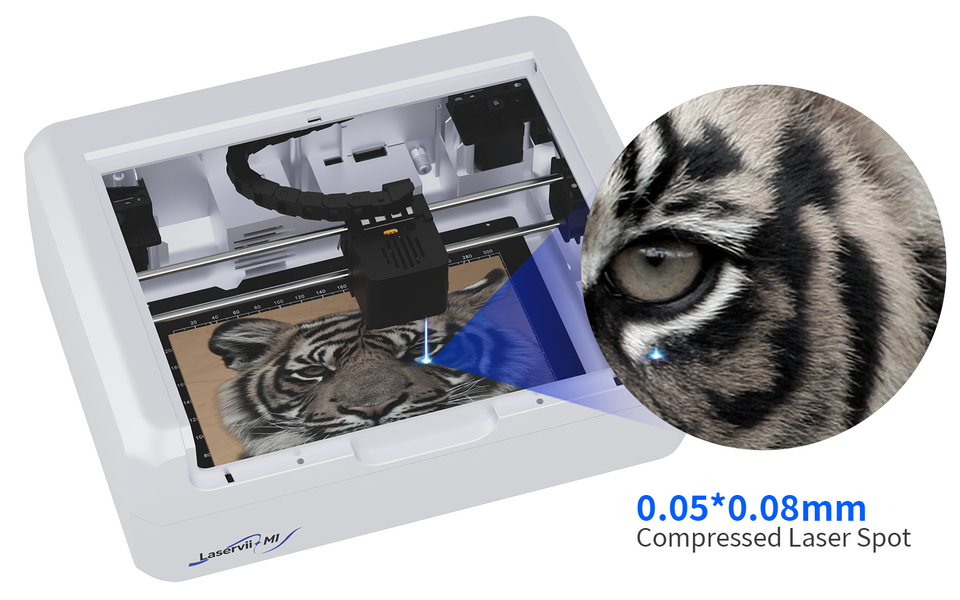

The XY-axis belts feature a tensioning design that enables the laser module to operate smoothly without slippage, achieving positioning accuracy of 0.01mm with precision consistently maintained.
Versatile Laser Modules

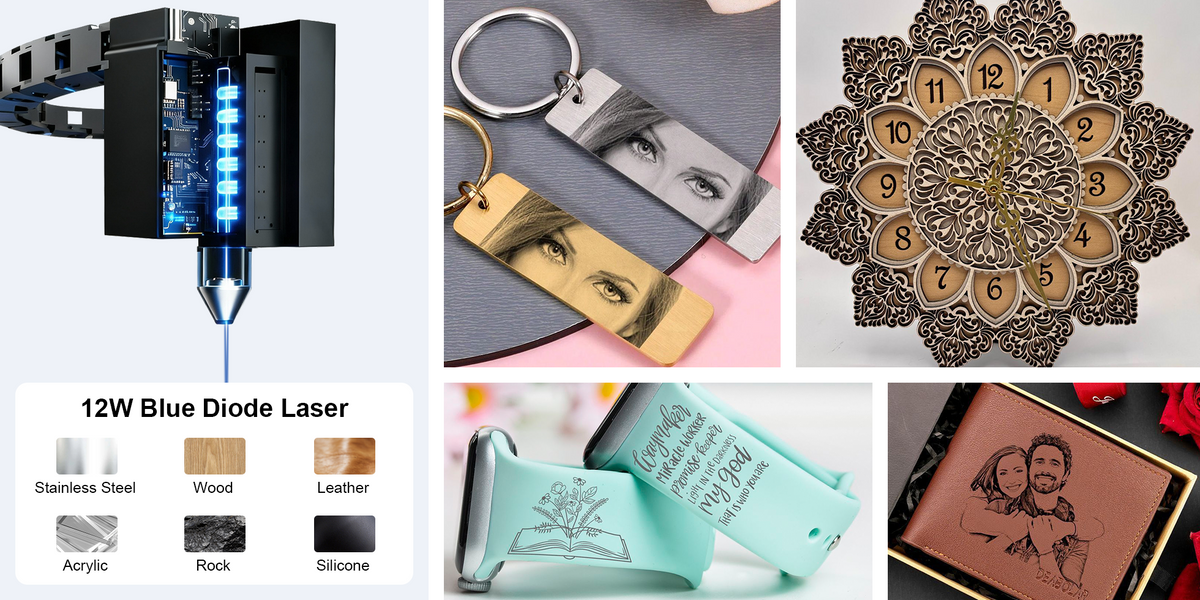

Choose 12W, 24W, or IR-2W as Needed
Works on 200+ Materials
Ready to Use — Perfect for Beginners
95% assembled for instant creativity—no tools, just start crafting
Easy Design — User-friendly Software
Multiple Connectivity: Ofers WiFi, USB, and TF card(The TF card requires a display screen for use)
Compact Design — Lightweight & Portable
Dimensions:485 × 375 × 200 mm — about the size of a printer
Create like a Pro in Just 3 Steps!
-
Step 1: Place Material
-
Step 2: Design
-
Step 3: Start
-
Done!
Multiple Optional Accessories — Better Experience

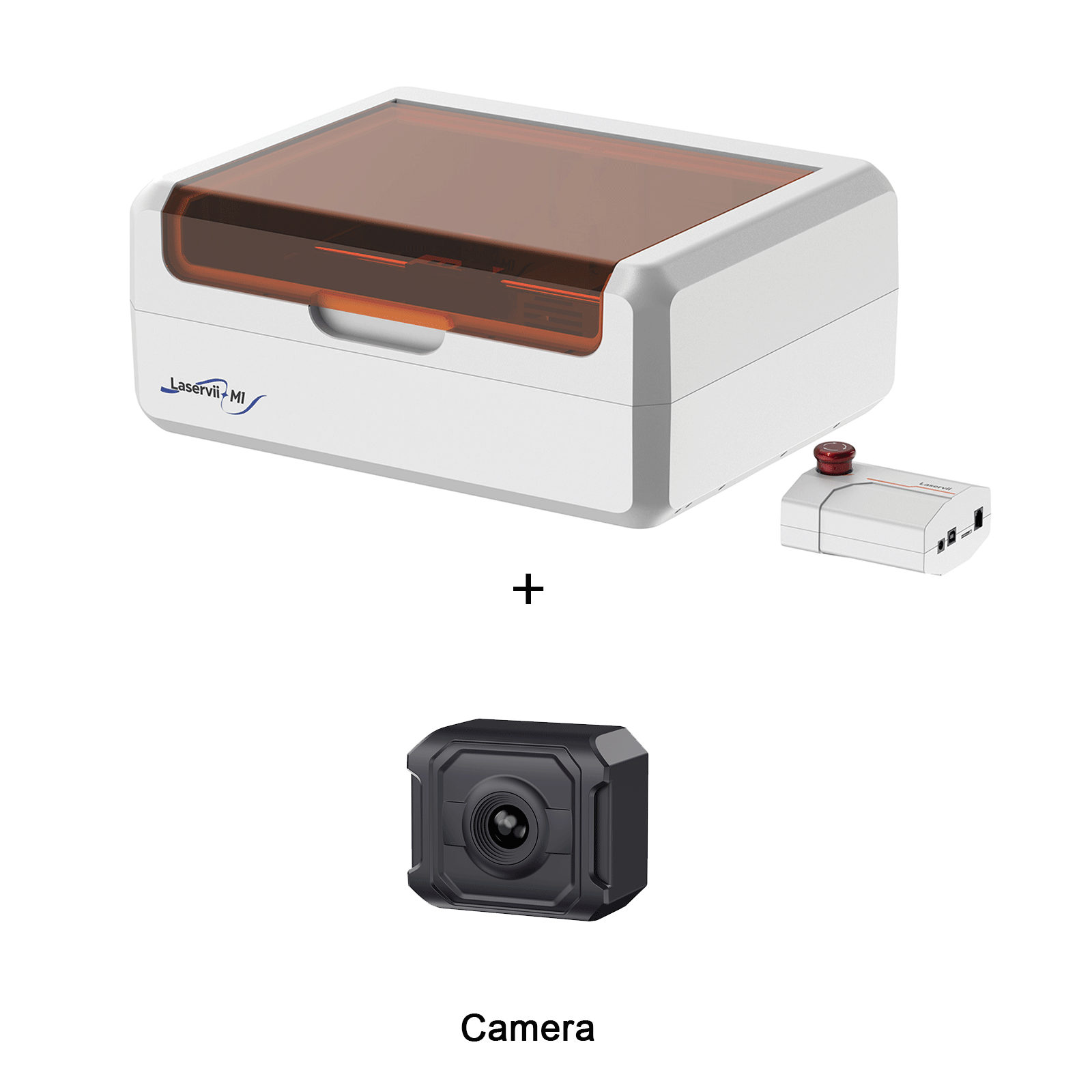

Camera Module
Rotary Module

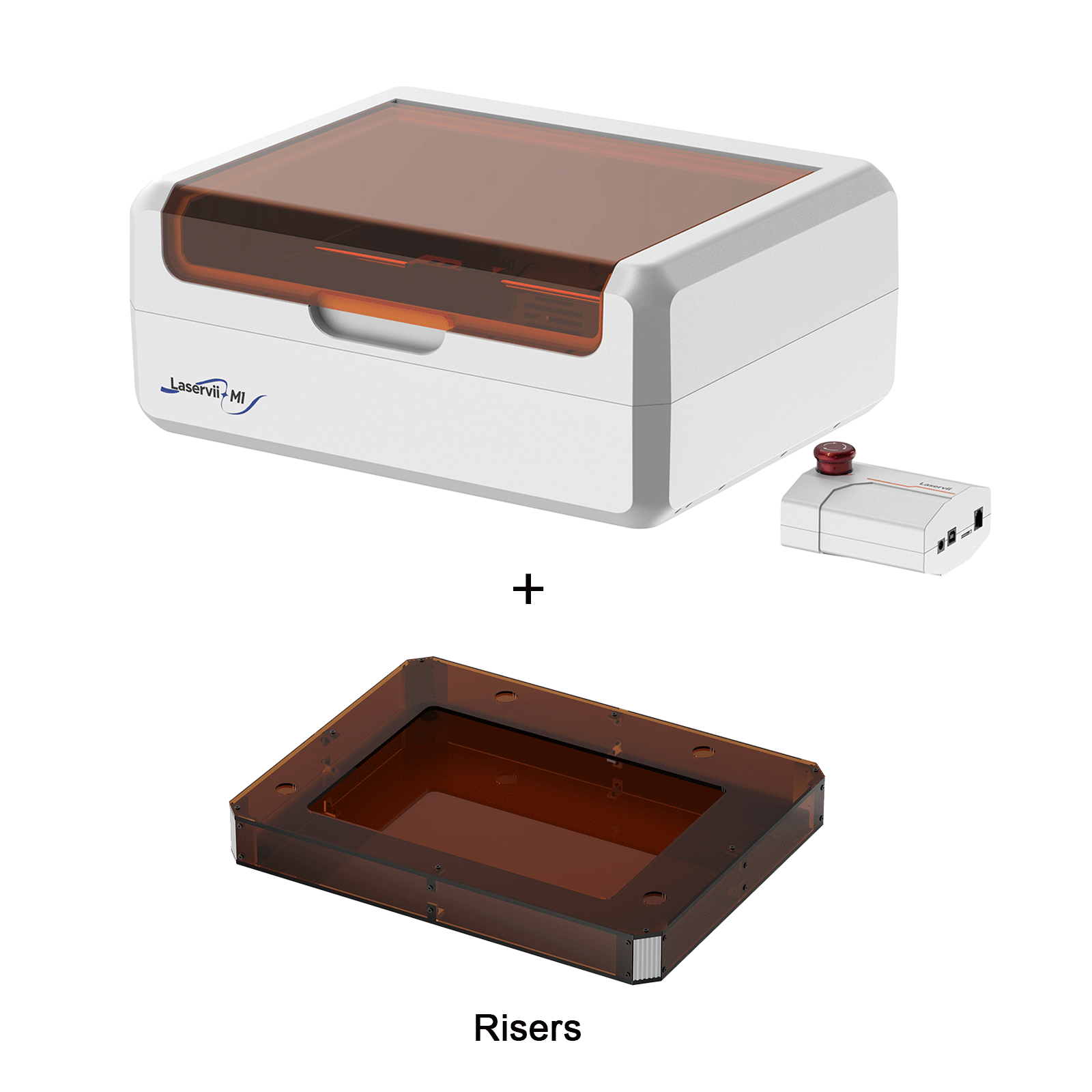

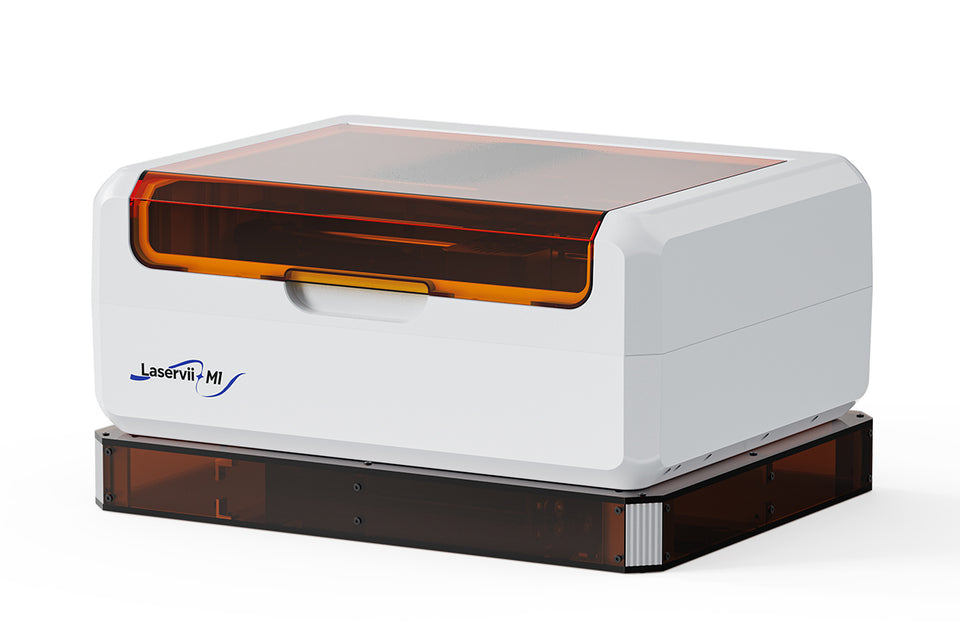

Engraver Risers

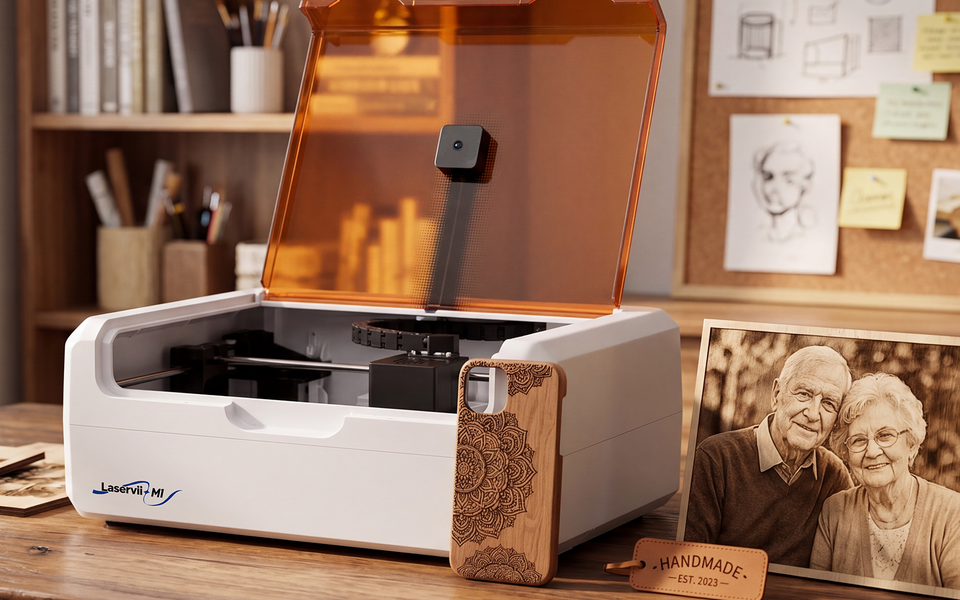

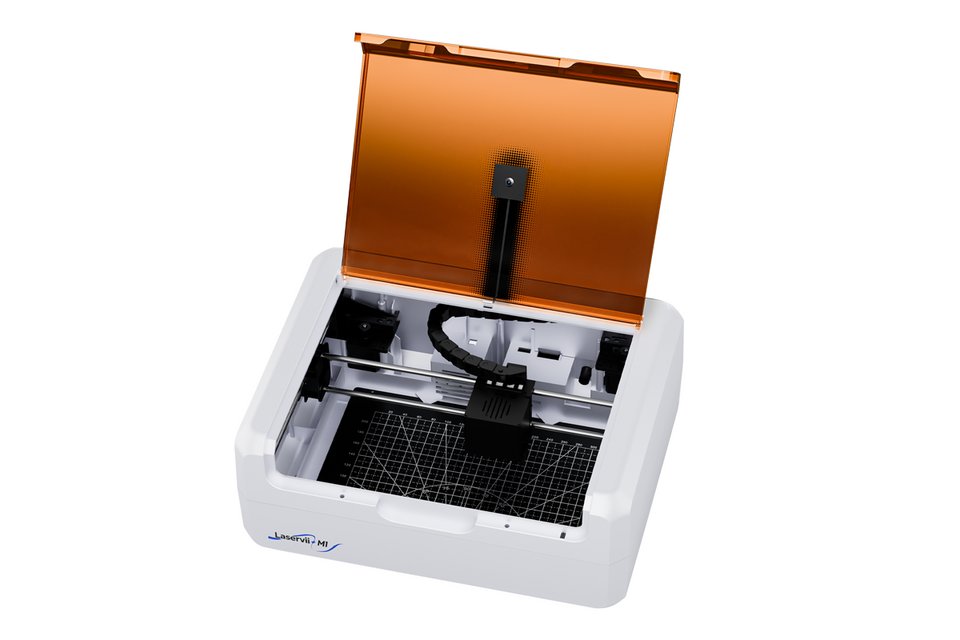

Our camera delivers precise, seamless previews for your projects while minimizing edge distortion. For the finest details, the close-up detail camera enables real-time previews, ensuring accurate engraving from intricate patterns to meticulously crafted text.

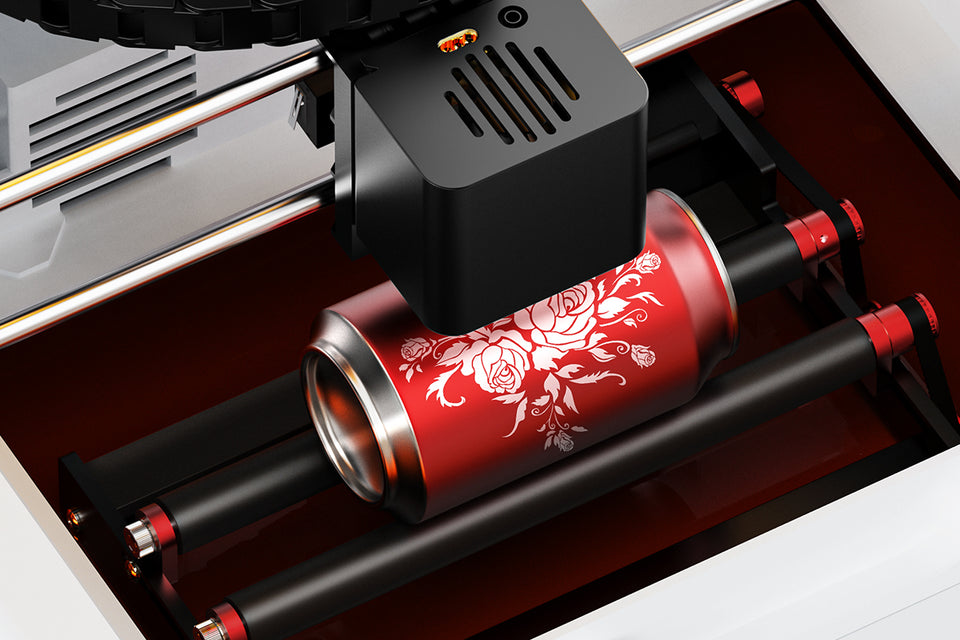

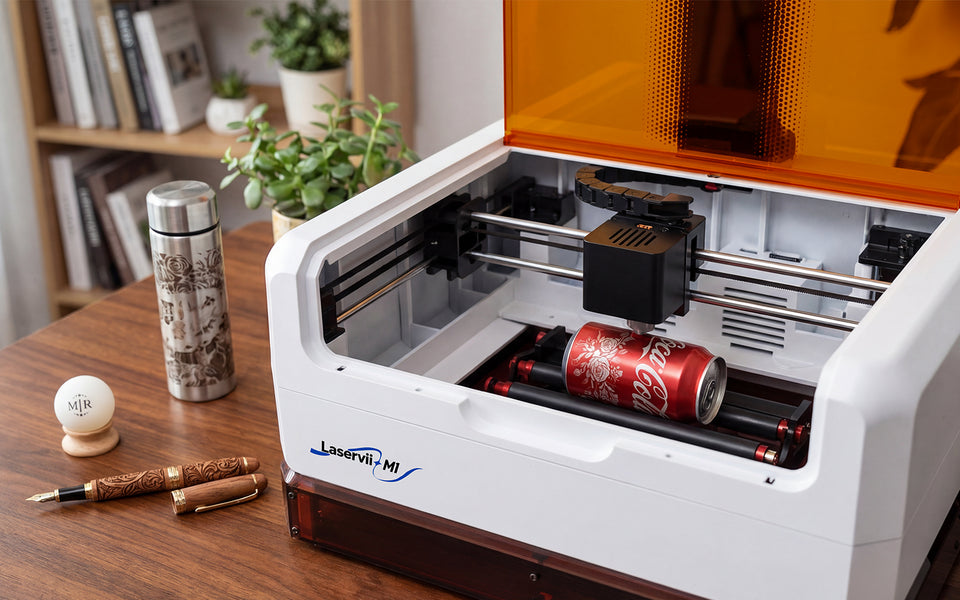

Achieve precise engraving on bottles and cups, imprinting exclusive markings to create one-of-a-kind three-dimensional gifts.

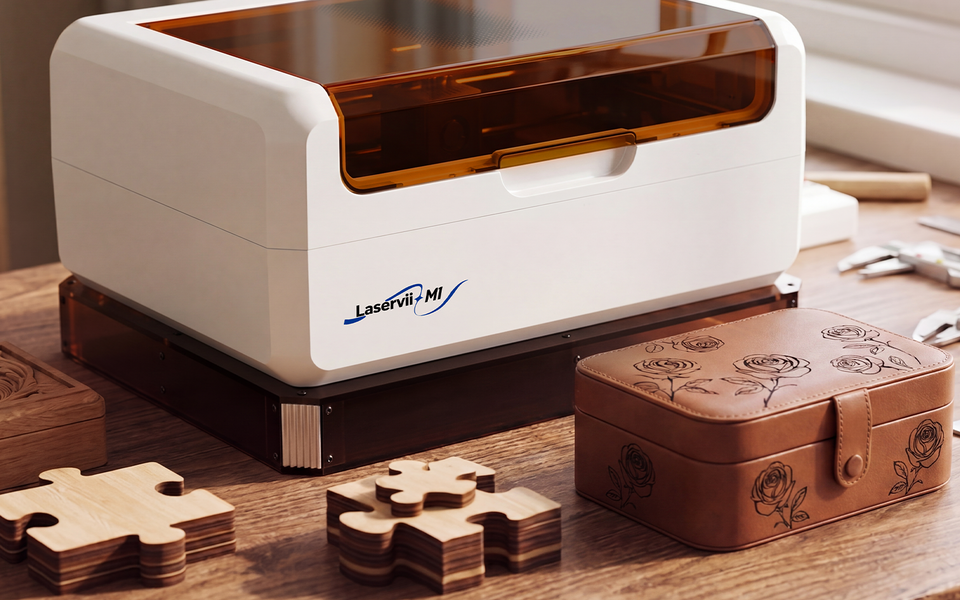

Height-adjustable columns crafted from durable materials provide essential height and exceptional stability for rotating attachments and large-scale engraving.
Diverse Accessories Simplify Creation
Camera Module
Auxiliary Software Positioning

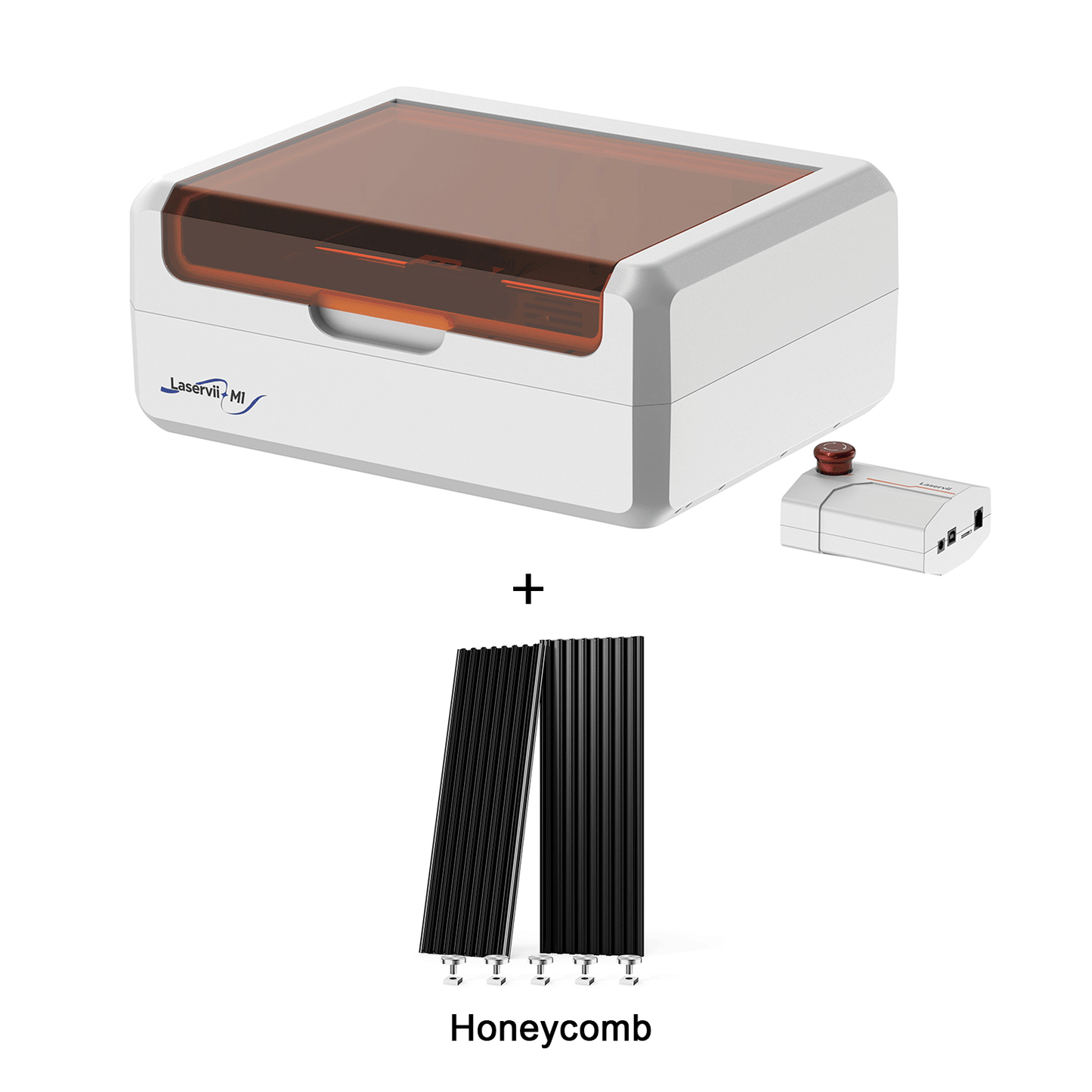

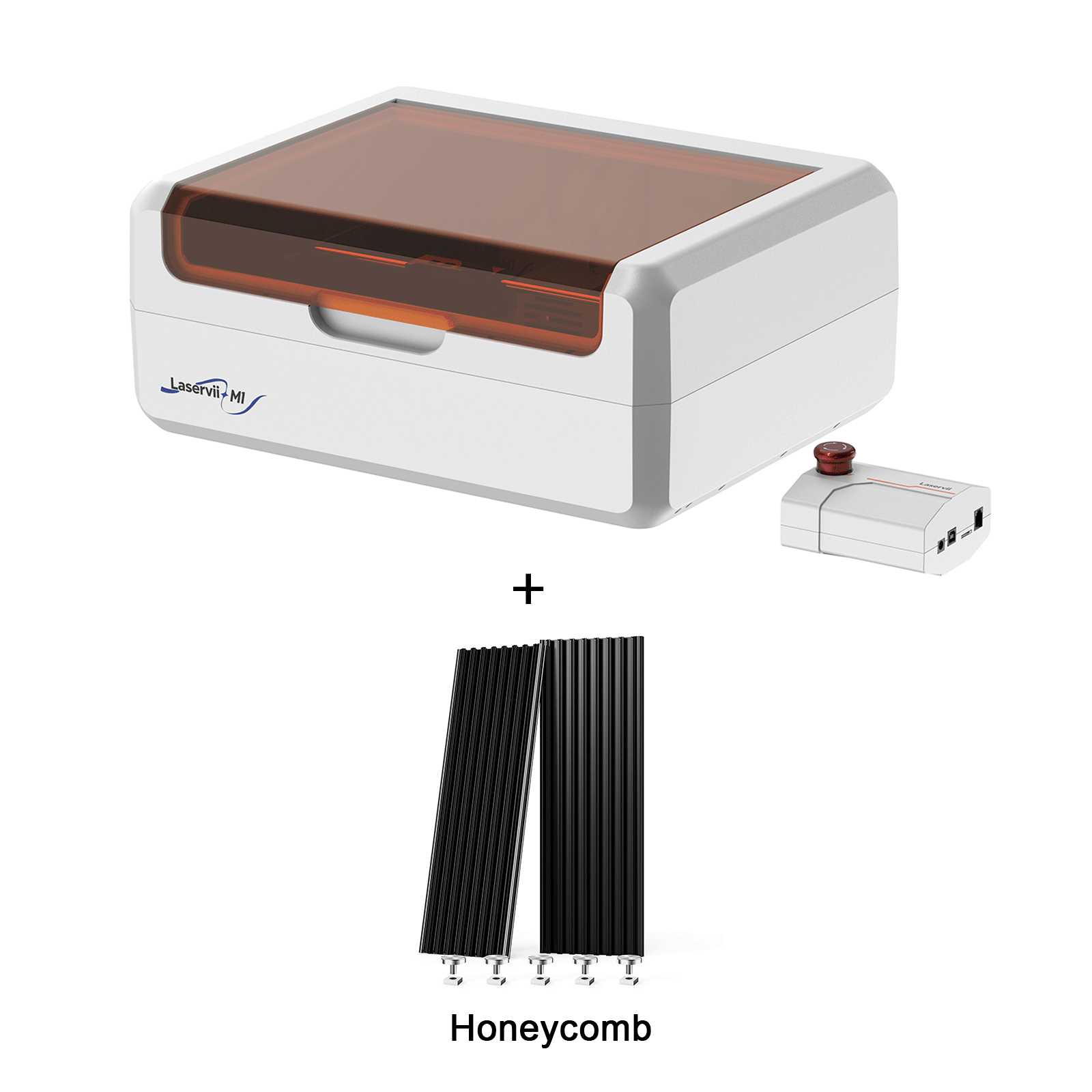

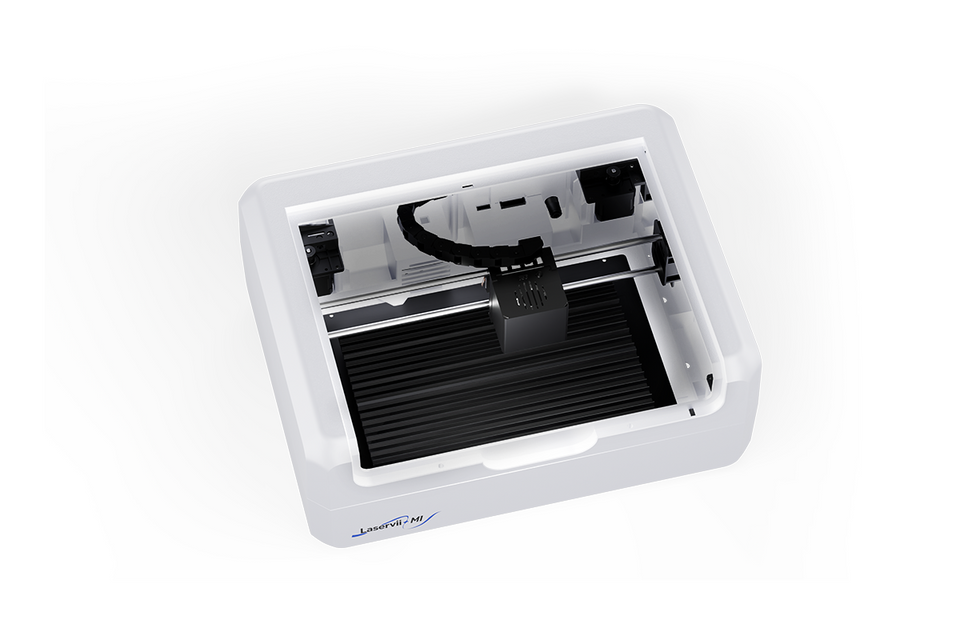

Honeycomb Bed
Improve Cutting Performance
See the Difference
👉🏻
M1s 12W
M1s 24W
M1s IR 2W
Processing Capability
Best for
Detailed engraving and the largest listed M1s work area

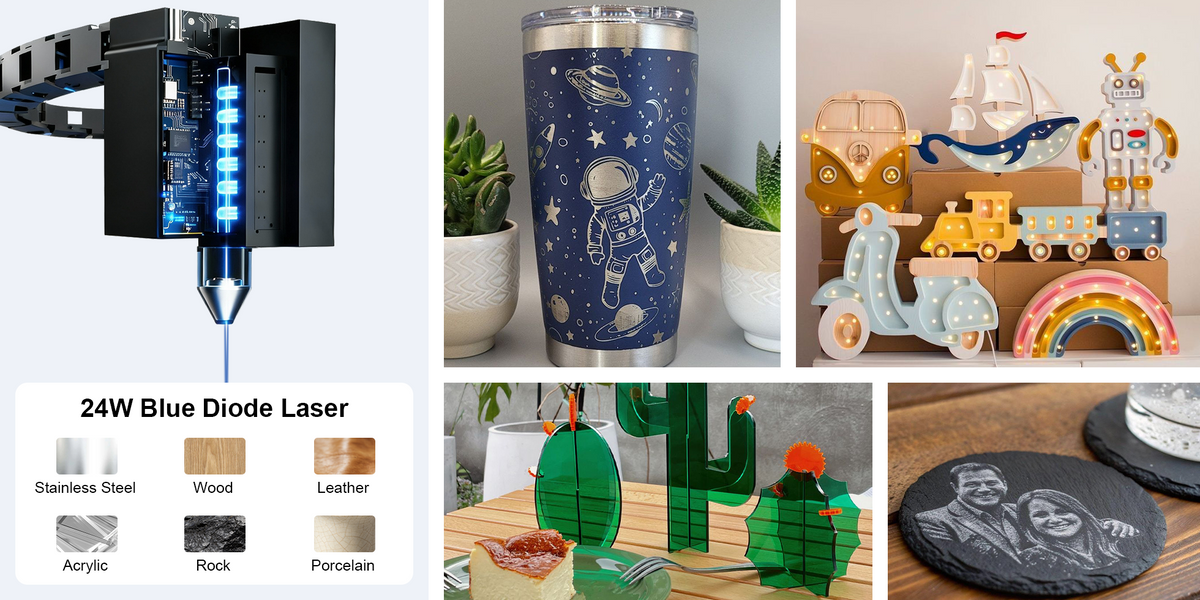

Higher specified blue-diode optical output for compatible non-metal projects
Fine marking on listed metals and opaque acrylic

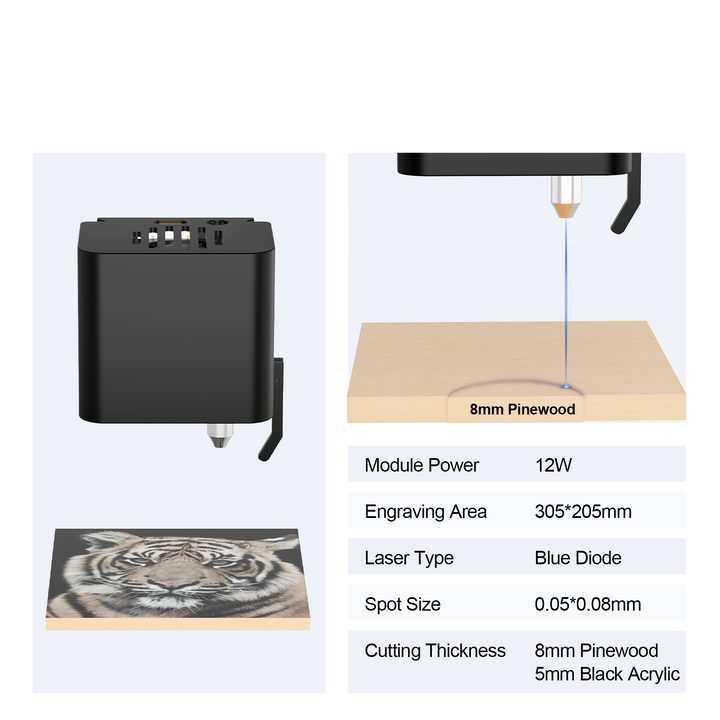

Laser module
12W blue-diode module

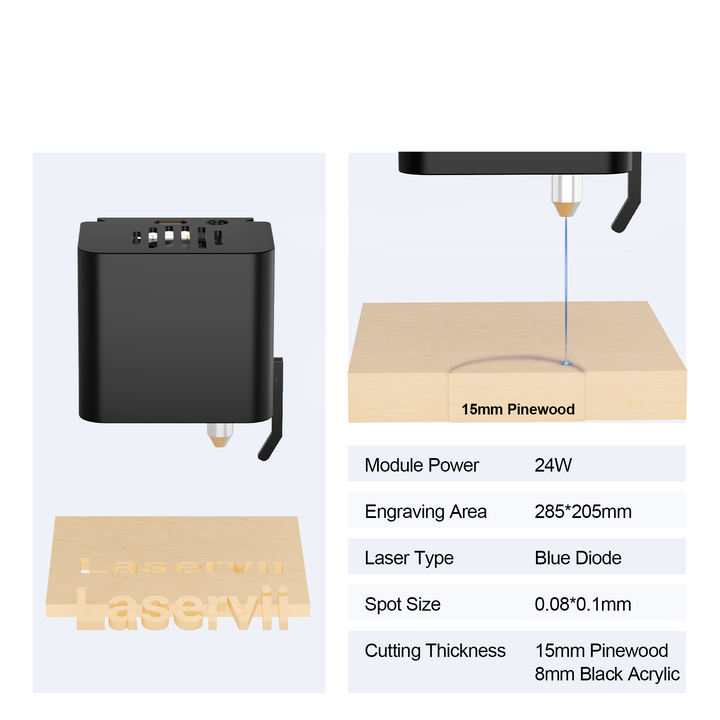

24W blue-diode module

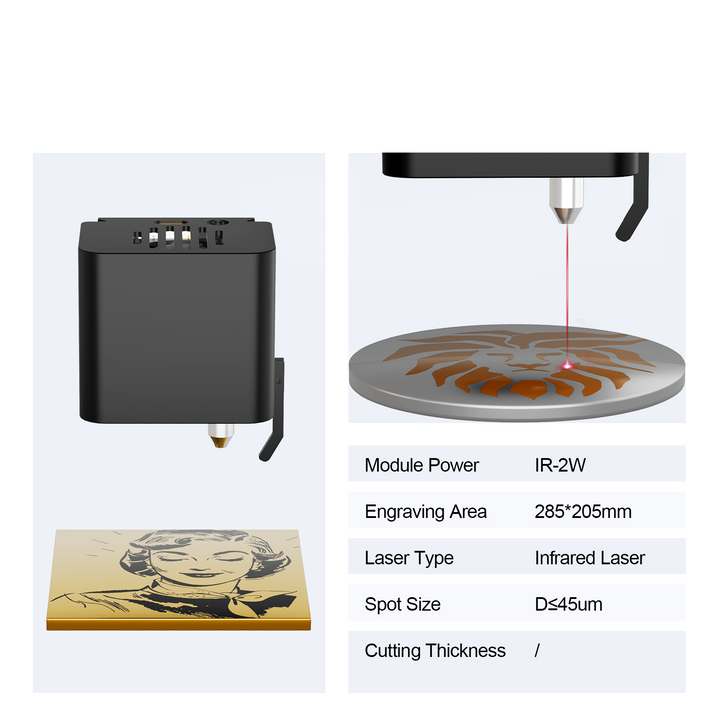

IR 2W infrared module
Working area
305 × 205 mm / 12.0 × 8.1 in
285 × 205 mm / 11.2 × 8.1 in
285 × 205 mm / 11.2 × 8.1 in
Supported workpiece height
0-50 mm
0-50 mm
0-50 mm
Maximum engraving speed
36,000 mm/min
36,000 mm/min
36,000 mm/min
Compatible materials
Plywood, MDF, solid wood, paper, kraft paper, coated metal, leather, selected laser-safe plastic and bamboo
Plywood, MDF, solid wood, paper, kraft paper, coated metal, leather, selected laser-safe plastic and bamboo

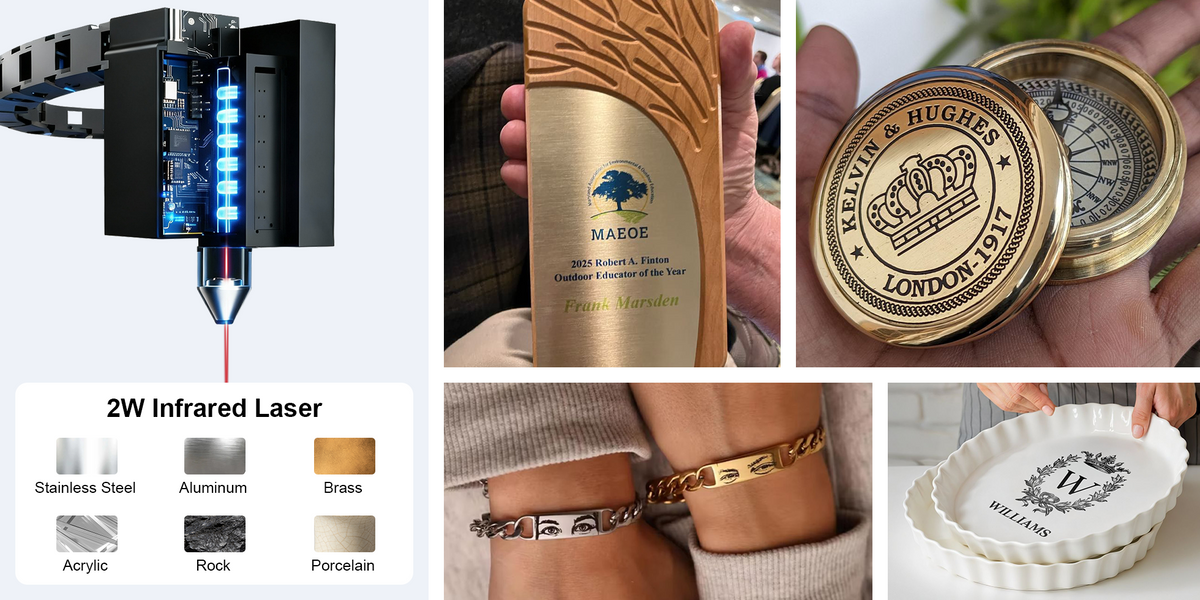

Stainless steel, titanium, iron, aluminum, copper, brass, zinc and opaque acrylic
Accuracy & Laser
Laser type
Blue diode
Blue diode
Infrared
Wavelength
450 ± 5 nm
450 ± 5 nm
1064 ± 1 nm
Specified laser output
Continuous optical output ≥9W
Continuous optical output ≥19.5W
Laser power ≥2W
X/Y positioning accuracy
±0.1 mm
±0.1 mm
±0.1 mm
Engraving accuracy
±0.1 mm
±0.15 mm
±0.1 mm
Focus spot
Typical 30 × 170 μm; range 15-50 × 150-200 μm
110 × 150 to 150 × 200 μm
Diameter ≤45 μm
Focus distance
21 ± 0.5 mm
21 ± 0.5 mm
21 ± 0.5 mm
Connectivity & Software
Firmware
Open-source GRBL
Open-source GRBL
Open-source GRBL
Compatible software
LightBurn / LaserGRBL
LightBurn / LaserGRBL
LightBurn / LaserGRBL
Machine program files
.NC / .Gcode
.NC / .Gcode
.NC / .Gcode
Wi-Fi
Supported
Supported
Supported
USB data port
Supported
Supported
Supported
TF-card storage
Supported
Supported
Supported
Bluetooth
Not supported
Not supported
Not supported
USB flash drive
Not supported
Not supported
Not supported
Operating system listed
Windows / iOS
Windows / iOS
Windows / iOS
Machine & Power
Product dimensions
485 × 375 × 200 mm / 19.1 × 14.8 × 7.9 in
485 × 375 × 200 mm / 19.1 × 14.8 × 7.9 in
485 × 375 × 200 mm / 19.1 × 14.8 × 7.9 in
Body material
ABS + PC
ABS + PC
ABS + PC
Body color
White / amber
White / amber
White / amber
Control-board input voltage
24V
24V
24V
Rated electrical power
72W
120W
96W
Power adapter
24V / 3A
24V / 5A
24V / 4A
Net weight
7.0 kg / 15.4 lb
7.2 kg / 15.9 lb
7.2 kg / 15.9 lb
Package & Accessories
Package dimensions
532 × 425 × 255 mm
532 × 425 × 255 mm
532 × 425 × 255 mm
Gross weight
12.0 kg / 26.5 lb
12.0 kg / 26.5 lb
12.0 kg / 26.5 lb
Optional accessories
Risers, air assist, camera and TR3 rotary
Risers, air assist, camera and TR3 rotary
Risers, air assist, camera and TR3 rotary
Safety & Compliance
Certifications / standards listed
CE-MD, CE-RED NB, FCC SDoC, FCC ID, EN 60825-1, FDA, UL 62368-1, CAN/CSA 62368-1
CE-MD, CE-RED NB, FCC SDoC, FCC ID, EN 60825-1, FDA, UL 62368-1, CAN/CSA 62368-1
CE-MD, CE-RED NB, FCC SDoC, FCC ID, EN 60825-1, FDA, UL 62368-1, CAN/CSA 62368-1
Safe-use requirement
Ventilation, material screening, supervision and a fire-safe workspace are still required
Ventilation, material screening, supervision and a fire-safe workspace are still required
Ventilation, material screening, supervision and a fire-safe workspace are still required
A

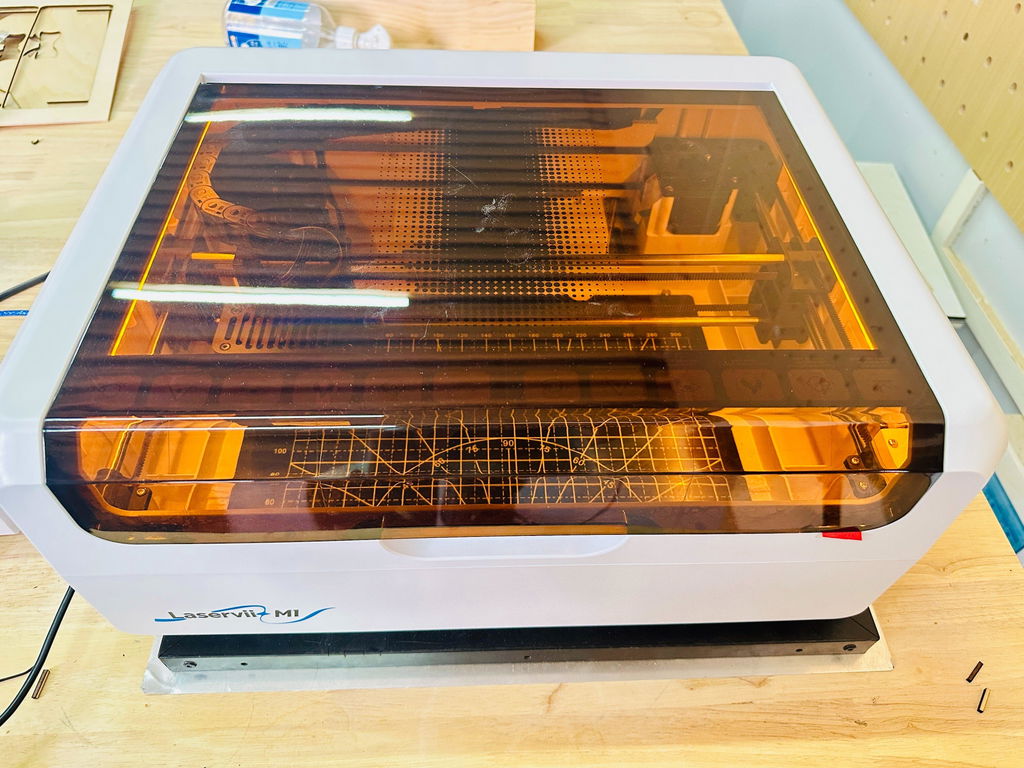

The machine arrived heavier than I expected—it feels quite substantial. Assembly was almost effortless; just as the product description stated, it was ready to use right out of the box. Connecting to Wi-Fi via the software went smoothly, and the interface isn’t overly complicated. As a complete beginner with no prior experience in laser engraving, I spent half a day watching tutorials and experimenting with a few of the included sample files before successfully engraving a wooden bookmark. The safety feature that automatically stops the machine when the lid is opened is essential and provides significant peace of mind.
A
Heute ist meine Maschine angekommen. Sie macht einen guten ersten Eindruck, getestet habe ich sie aber noch nicht – werde ich auf jeden Fall machen. Die Laservii-Wiki scheint sehr ausführlich, hoffentlich läuft alles reibungslos.
